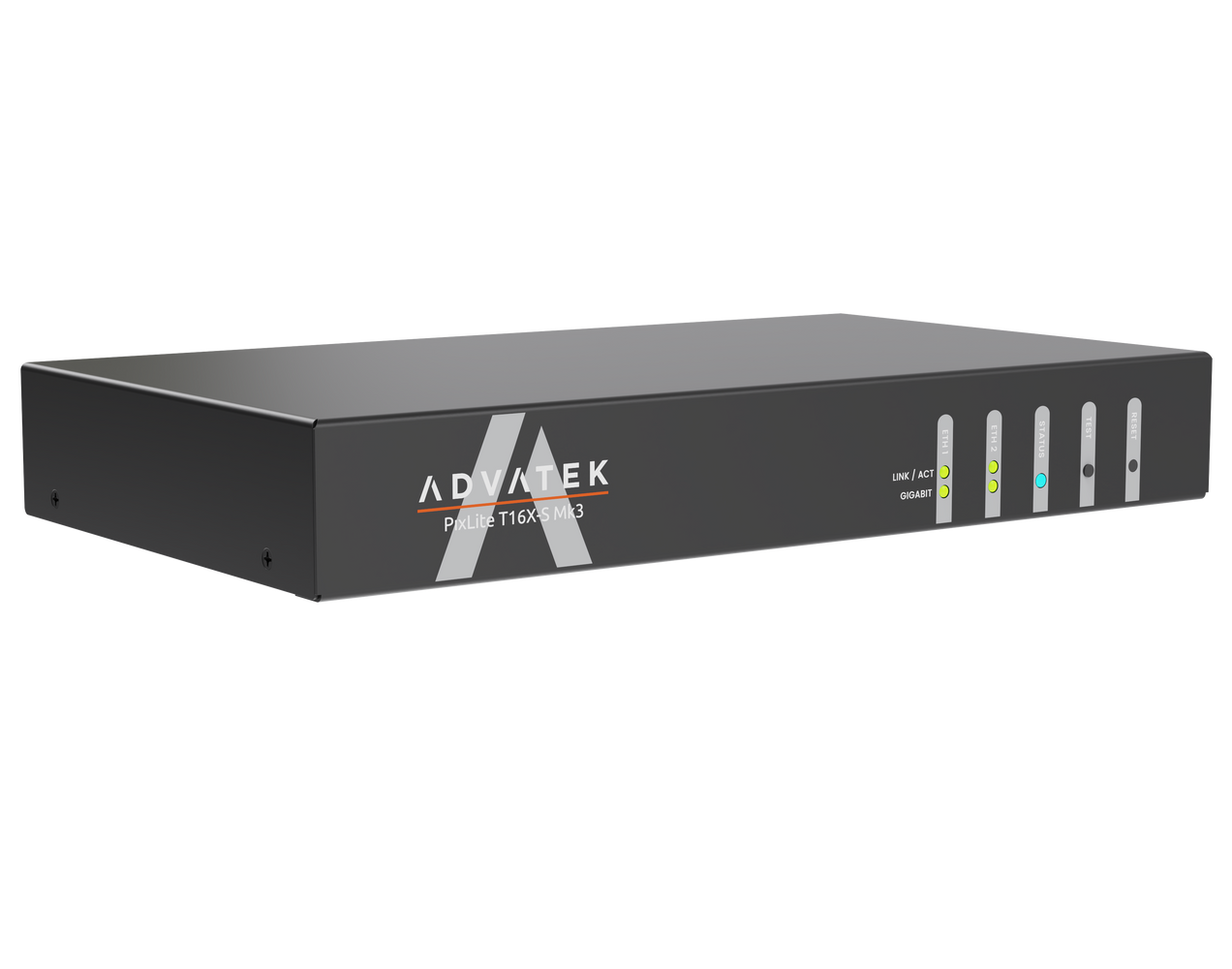

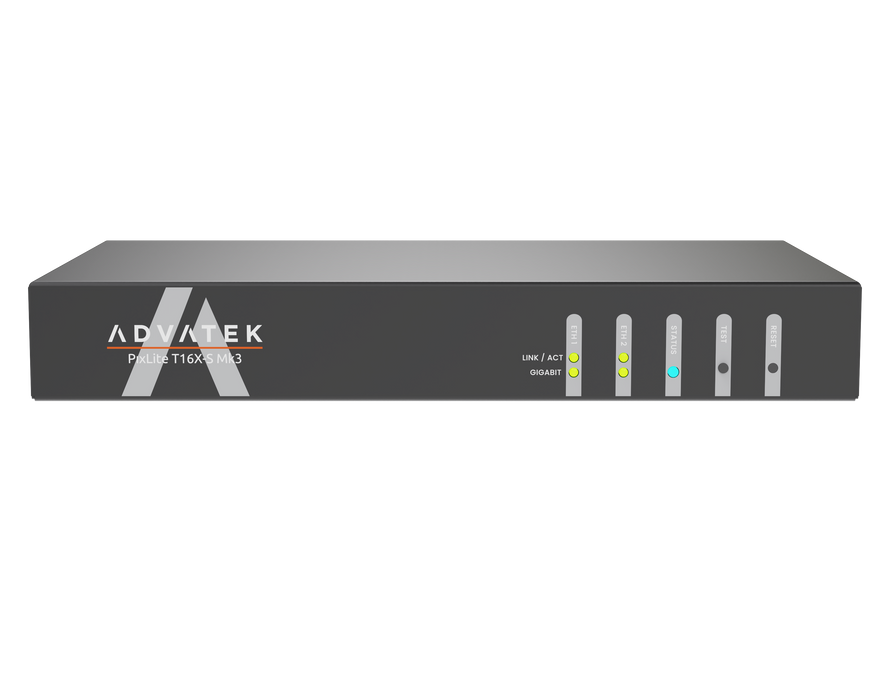

Advatek PixLite T16X-S Mk3
Drop shipped from vendor
The Advatek PixLite® T16X-S Mk3 is a powerful long-range pixel controller that joins Advatek's bestselling T8-S Mk3. Like the rest of the T-series, it transmits pixel data over standard Cat cable to remote PixLite® receivers placed near the fixtures — at distances of up to 300 meters — rather than driving pixels directly. Its sixteen RJ45 output connectors feed up to sixteen PixLite® R1 or R2 receivers and carry up to 96 universes of data, delivering maximum flexibility and cost efficiency for spreading more pixels across more locations.
With 16 physical output connectors — each supporting half the signal capacity of a T8 output, effectively splitting each of the T8's eight outputs in two — the T16X-S pairs perfectly with single-output receivers like the PixLite® R1F-S. When a discrete location needs just a single run of pixels, this means fewer transmitters, no wasted pixel outputs, and reduced system cost and commissioning time. Housed in a rugged aluminum enclosure with direct panel, wall, and rack mounting, it features electrical fault protection on all ports and operates reliably from −10°C to +60°C.
Officially supported with DMX Core 100. This controller is a supported integration for the DMX Core 100 lighting controller — auto-discover it on the network, push Art-Net or sACN to its pixel and auxiliary ports in one click, and monitor board temperature, voltage, and per-output current live. Learn more about the Advatek integration →
At its heart is the PixLite® Mk3 processor, Advatek's state-of-the-art third-generation engine:
- Gamma correction for pixels of all resolutions, so colors appear more vivid and accurate
- Extremely fast refresh rates — hundreds of frames per second for fast, reliable dynamic effects
- Dithering to make low-resolution pixels appear much higher-resolution
- Auto-Sync dynamic frame-rate adjustment to reduce out-of-sync pixels and tearing, even without an external sync source
Key Features
- Long-range architecture — transmits pixel data over Cat cable to remote receivers up to 300m from the transmitter

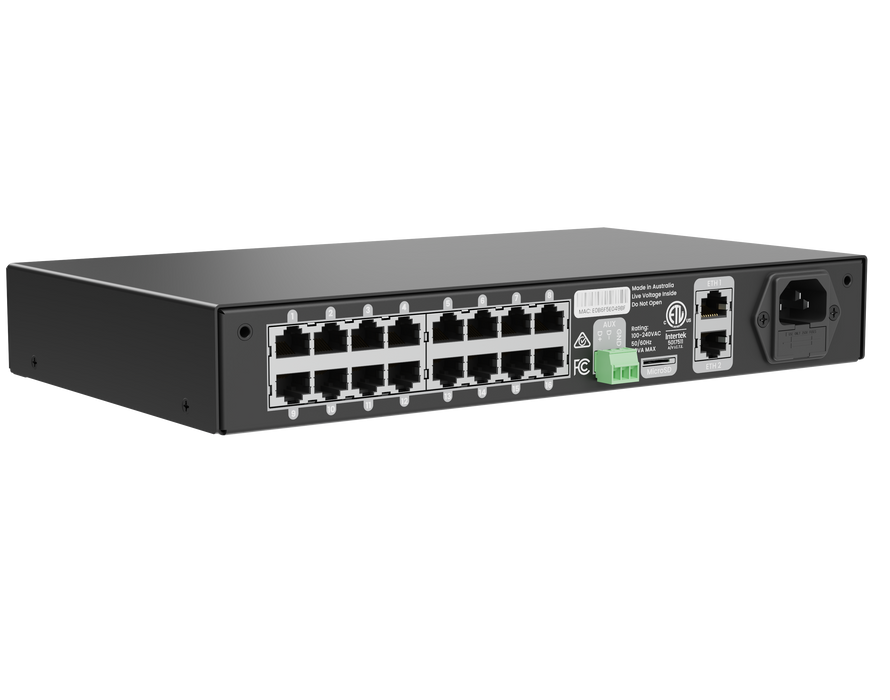

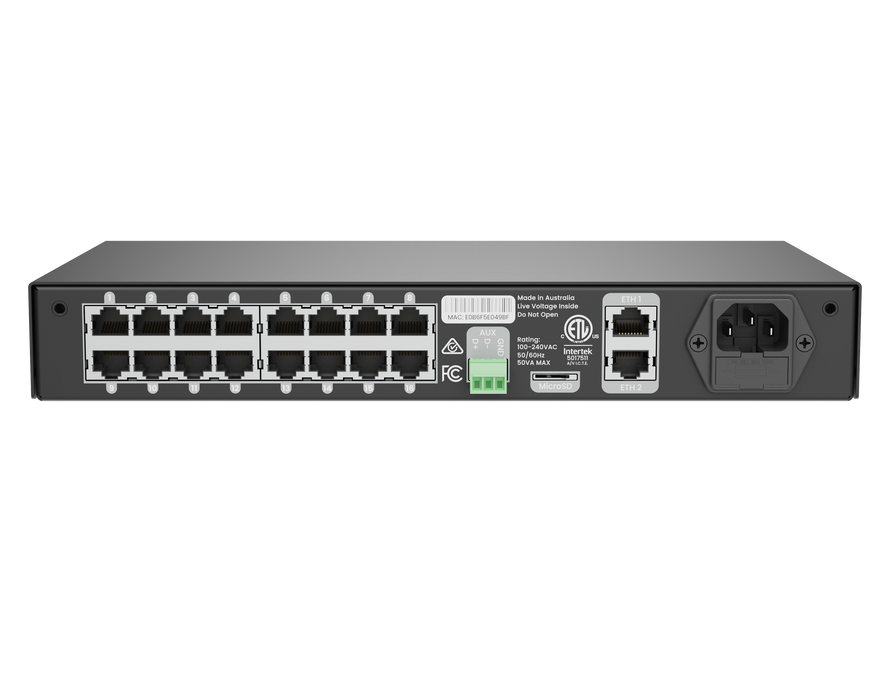

- Sixteen RJ45 output connectors connect to up to sixteen PixLite® R1 or R2 receivers
- Each output supports half the signal capacity of a T8 output — ideal for single-run locations with the R1F-S, minimizing wasted outputs and transmitter count
- 96 universes of Art-Net or sACN over dual 10/100/1000 Mbit/s Gigabit Ethernet ports
- Over 90+ pixel protocols supported
- Onboard microSD slot for Advatek SHOWTime™ standalone playback — run recorded shows without a computer or live data
- Auxiliary RS485 port for DMX512 input/output
- Electrical fault protection on all ports, configured and managed with Advatek Assistant 3
- Backed by a five-year warranty and global certifications (ETL/UL, CE, UKCA, RCM, FCC, RoHS)
Optional Conformal Coating adds a protective layer for harsh or high-humidity environments.
Specifications
| Ethernet Ports | 2 × 10/100/1000 Mbit/s |
| microSD Card Slot | Yes |
| Auxiliary Port | 1 × RS485 Input/Output |
| Data Outputs (to receivers) | 16 × RJ45 |
| Receivers Supported | Up to 16 × PixLite® R1 or R2 |
| Universes | 96 (Art-Net / sACN) |
| Transmission Distance | Up to 300m to receivers |
| Dimensions | 282 × 42 × 169 mm |
| Weight | 1.32 kg |
| Enclosure Material | Aluminum |
| Mounting Options | Direct Panel, Wall & Rack Mountable |
| Input Power | 100V–240V AC |
| Power Input Connector | 1 × IEC |
| AC Fuse | 1A M205 |
| Ambient Operating Temperature | −10°C to +60°C |
| Country of Origin | Australia |
| Warranty | 5 Years |
