DMX Core 100 Software License - Full
The complete DMX Core 100 platform — run it on your own hardware
The Full software license unlocks the entire DMX Core 100 lighting-control platform on a computer you already own. Install it on Windows, macOS, or Linux (x64 or ARM64, including Raspberry Pi 4 and newer) and run the same software that powers the dedicated DMX Core 100 hardware — every feature enabled, with no output interruptions.
What you can do
- Control fixtures directly — import profiles, assign addresses, group into zones, and build reusable presets with real-time color, dimmer, and position control.
- Record & play back shows — capture DMX from an external console, store it as cues, and trigger playback on schedule or on demand.

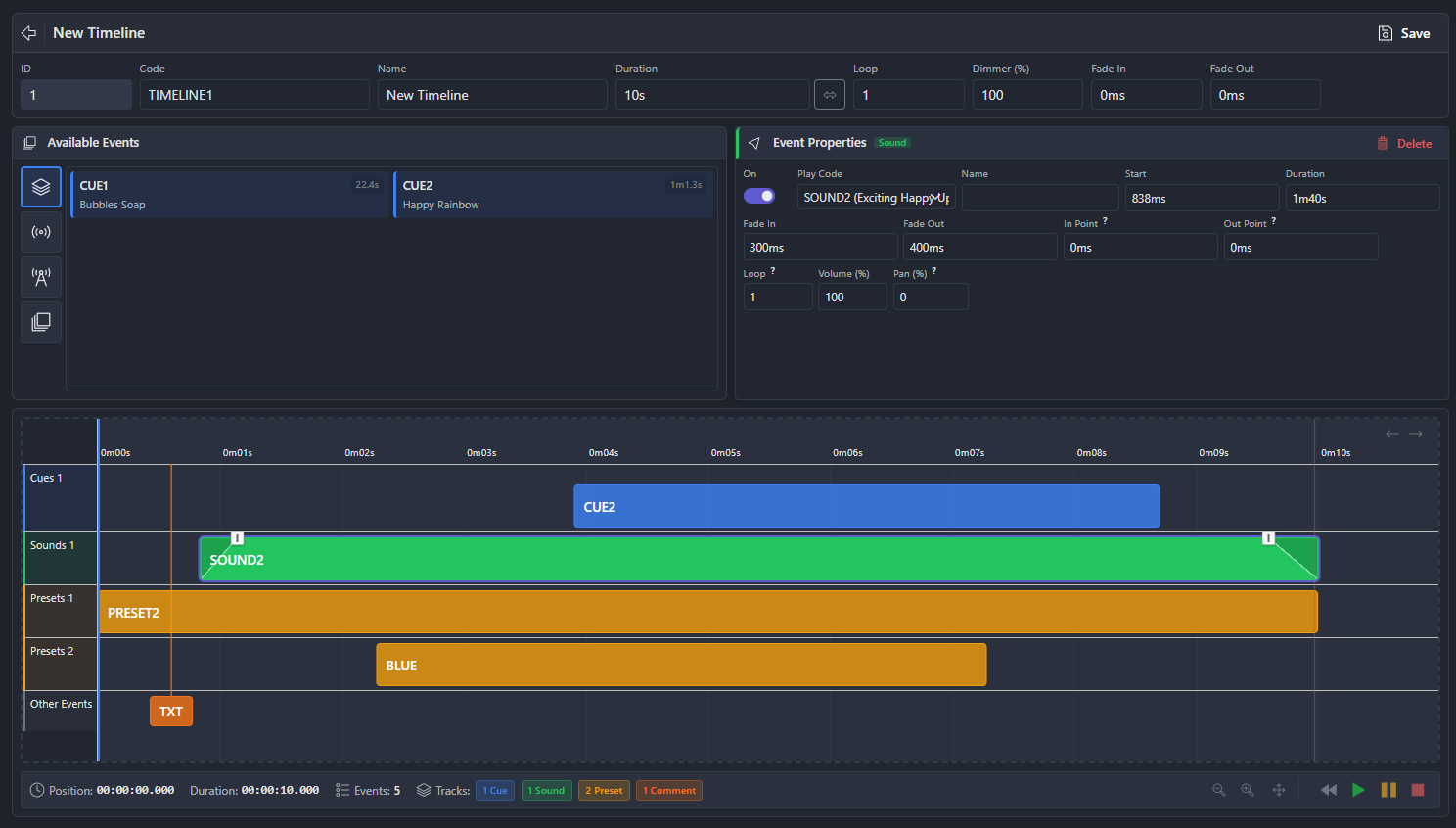

- Build timelines — arrange cues, presets, and audio on a visual timeline with fades, looping, and precise timing.
- Automate everything — schedule by time, date, or sunrise/sunset, and trigger from HTTP, OSC, MQTT, TCP, UDP, or DMX thresholds.
- Add built-in effects — breathing, chaser, fire, lightning, and more, each with configurable speed and intensity.
Key capabilities
- High-quality stream playback up to 800 universes at 40 Hz (600 at 60 Hz) for network streams
- Outputs Art-Net, sACN (E1.31), KiNet v1/v2, TPM2.net, and USB DMX (up to 4 universes via Enttec Pro / DMXking)
- Full browser-based Web UI from any device on the network
- Secure cloud remote access — no VPN or port forwarding (1 year included)
- Fleet remote management via portal.dmxcore.com: health monitoring, reboot, backup, and software updates
- Multi-user with role-based permissions, PIN authentication, API tokens, and audit logging
- Integrations: OSC, MQTT, REST API, MIDI, Q-SYS, Symetrix, Stream Deck, and Key Digital keypads
Native Advatek integration
DMX Core 100 works hand in hand with Advatek Lighting PixLite® pixel controllers through a deep, native integration for remote management and monitoring. Auto-discover every controller on the network, create Art-Net or sACN outputs in a single click, and watch board temperature, supply voltage, and per-output current live — with firmware and port-config drift detection so an install stays exactly as commissioned. Explore the Advatek integration →
Licensing
The license activates one install on the machine it is applied to. Want to try before you buy? The free demo is the same software in full-feature mode — DMX output simply pauses for one minute every sixteen minutes until a license is applied.
