DMX Core 100 Software License - Basic
DMX Core 100 — Basic software license for your own hardware
The Basic license runs the DMX Core 100 lighting-control software on a computer you already own — Windows, macOS, or Linux (x64 or ARM64, including Raspberry Pi 4 and newer). It's the same platform as the Full license, sized and priced for smaller installations, with uninterrupted DMX output once activated.
What you get
- Up to 8 universes of output over Art-Net, sACN (E1.31), KiNet v1/v2, and USB DMX
- Direct fixture control with profiles, zones, reusable presets, and built-in effects
- Cue record & playback, triggered on a schedule or on demand
- Scheduling and automation from HTTP, OSC, MQTT, TCP, UDP, or DMX thresholds

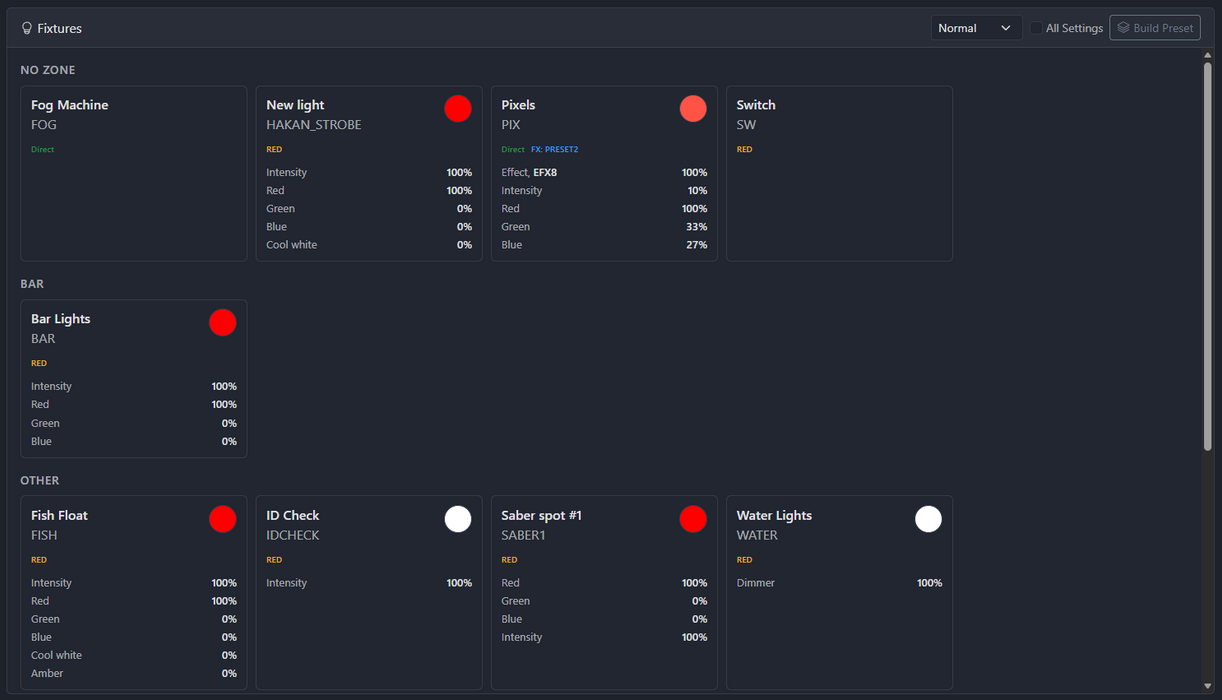

- Full browser-based Web UI, plus secure cloud remote access — no VPN or port forwarding (1 year included)
- Integrations: OSC, MQTT, REST API, MIDI, Q-SYS, Symetrix, Stream Deck, and Key Digital keypads
- Remote management via portal.dmxcore.com
Native Advatek integration
DMX Core 100 works hand in hand with Advatek Lighting PixLite® pixel controllers through a deep, native integration for remote management and monitoring. Auto-discover every controller on the network, create Art-Net or sACN outputs in a single click, and watch board temperature, supply voltage, and per-output current live — with firmware and port-config drift detection so an install stays exactly as commissioned. Explore the Advatek integration →
Basic vs Full
Basic includes everything the Full license does, with two limits: output is capped at 8 universes and the visual timeline editor is not included. Need more universes or timeline-based show building? Step up to the Full software license (up to 800 universes). The free demo is fully featured, so you can confirm what you need before buying.
