DMX Core 100 4.3" Controller - External Remote Control (QSYS/Symetrix)
Ready to be shipped from our US-based warehouse.

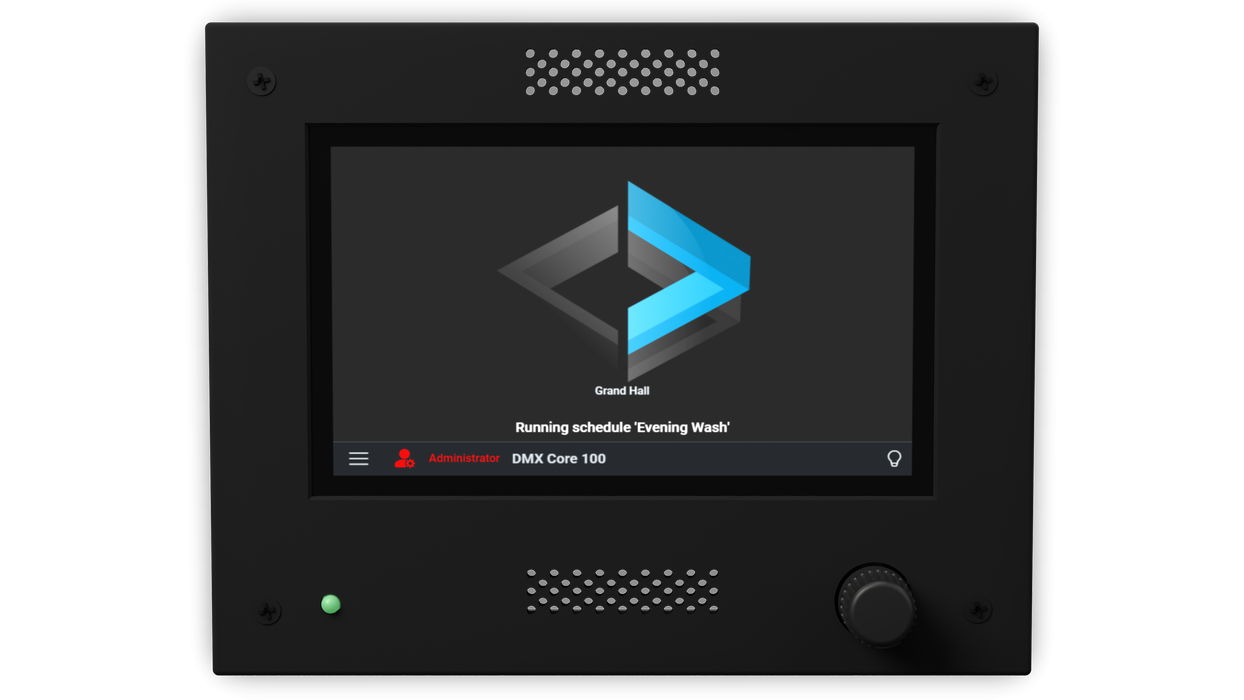

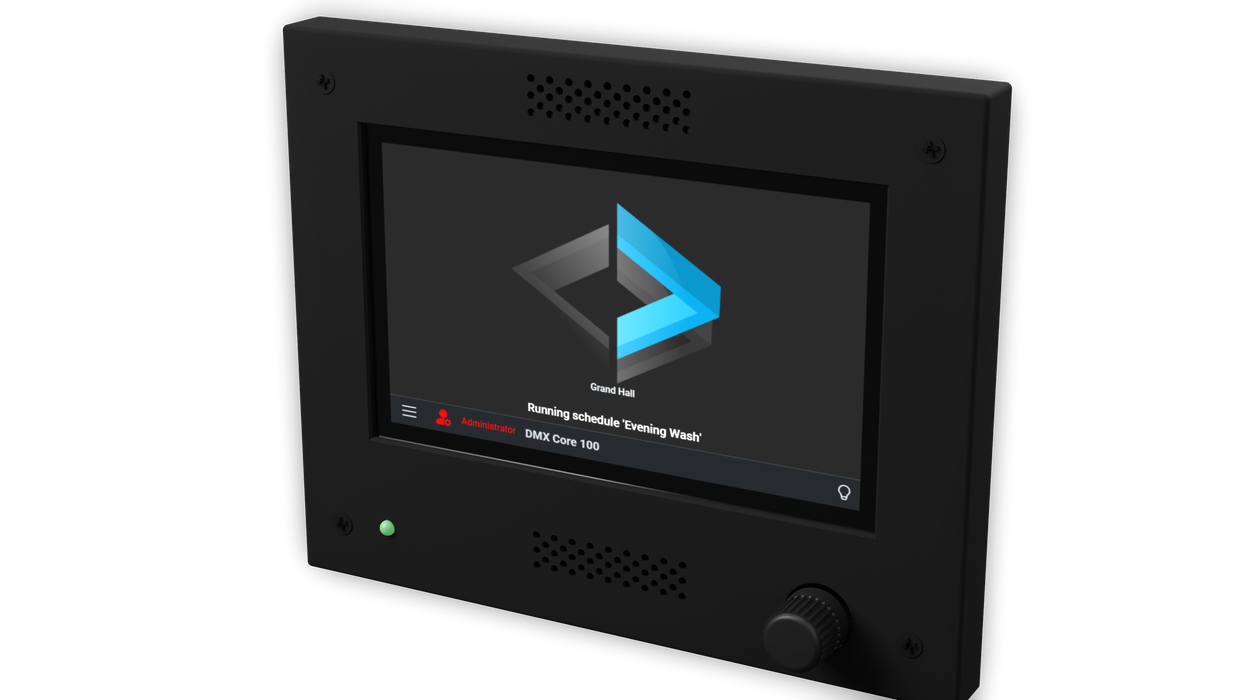

Touchscreen remote for Q-SYS & Symetrix
A standalone 4.3" touchscreen controller that runs as a programmable remote for QSC Q-SYS and Symetrix DSP cores. Powers over Ethernet (or 8–28 VDC) and installs however your project needs — desk stand, 19" rack, standard 2-gang electrical box, or a custom enclosure — giving you a clean, permanent control surface with no PC required.
Drive volume, source selection, presets, and any DSP control you choose to expose: the DMX Core communicates with Q-SYS using the Extended Control Protocol (ECP), and with Symetrix DSP cores directly. The installer designs the touchscreen interface, then locks it down for production — and the whole unit can be managed and updated remotely.
This is the AV control variant
This license runs the hardware purely as a DSP remote — it does not include the lighting features (DMX, Art-Net, sACN). The hardware is identical to the lighting models, so a unit deployed here can be upgraded to full lighting control later without swapping hardware.
Feature highlights
- Programmable remote for QSC Q-SYS (via ECP) and Symetrix DSP cores
- Installer-designed touchscreen UI that locks down for production
- Full control and configuration via the Web UI and REST API
- Power over Ethernet or 8–28 VDC input
- 1 GbE Ethernet; MicroSD and USB-A for storage and boot-image loading
- RTC clock with battery backup plus network time sync

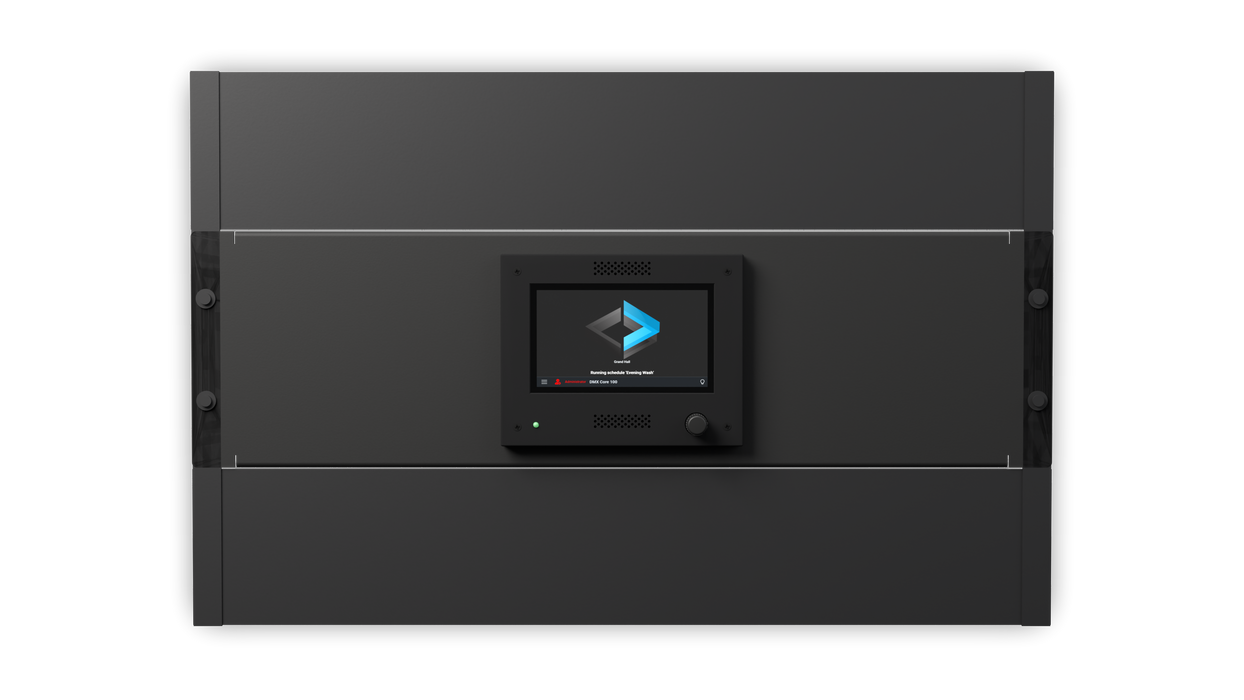

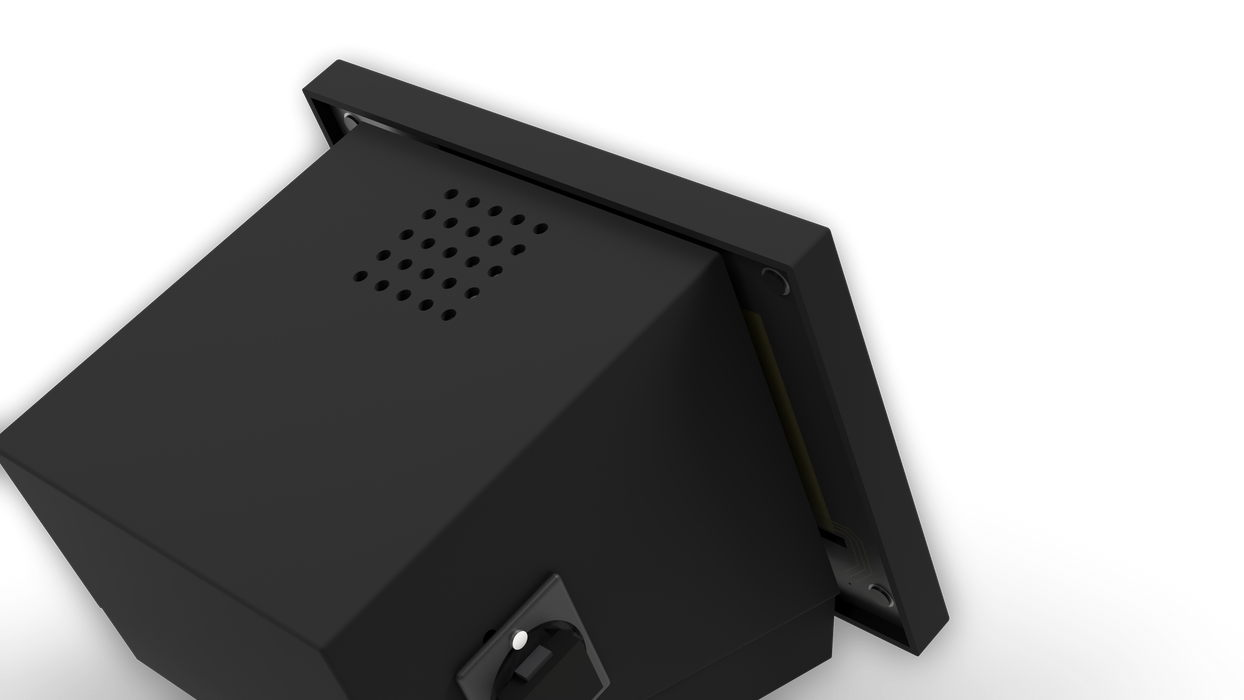

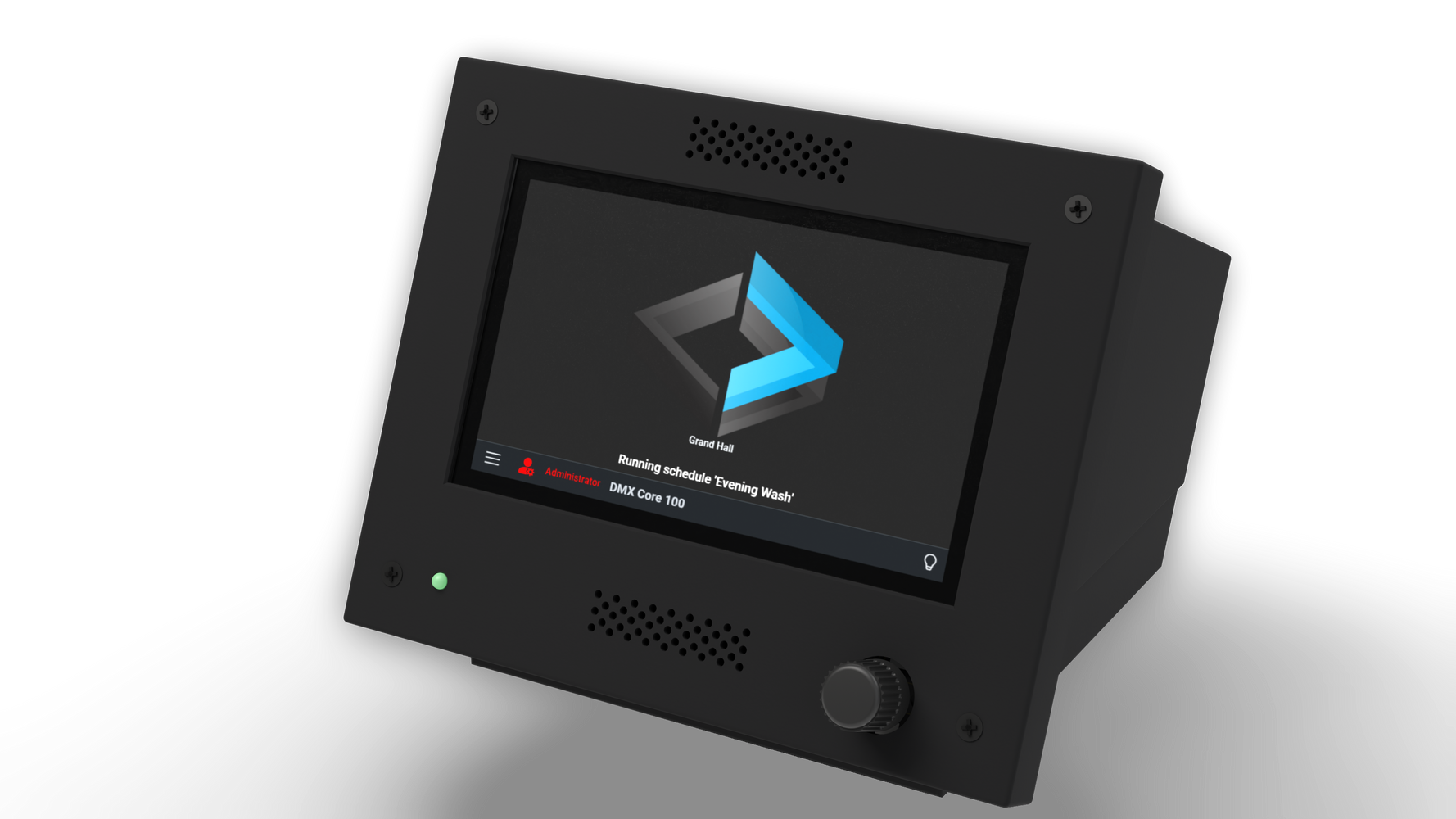

- Flexible mounting: desk stand, 19" rack mount, standard 2-gang electrical box, or custom enclosure (stands and rack mount sold separately)
- Secure cloud remote access and remote software updates (1 year included); remote management via portal.dmxcore.com
- Upgradeable to full DMX / Art-Net / sACN lighting control — same hardware
Ships from our US-based warehouse. Q-SYS & Symetrix remote control documentation · DMX Core mailing list
