Advatek Flat Surface Front Mount Kit

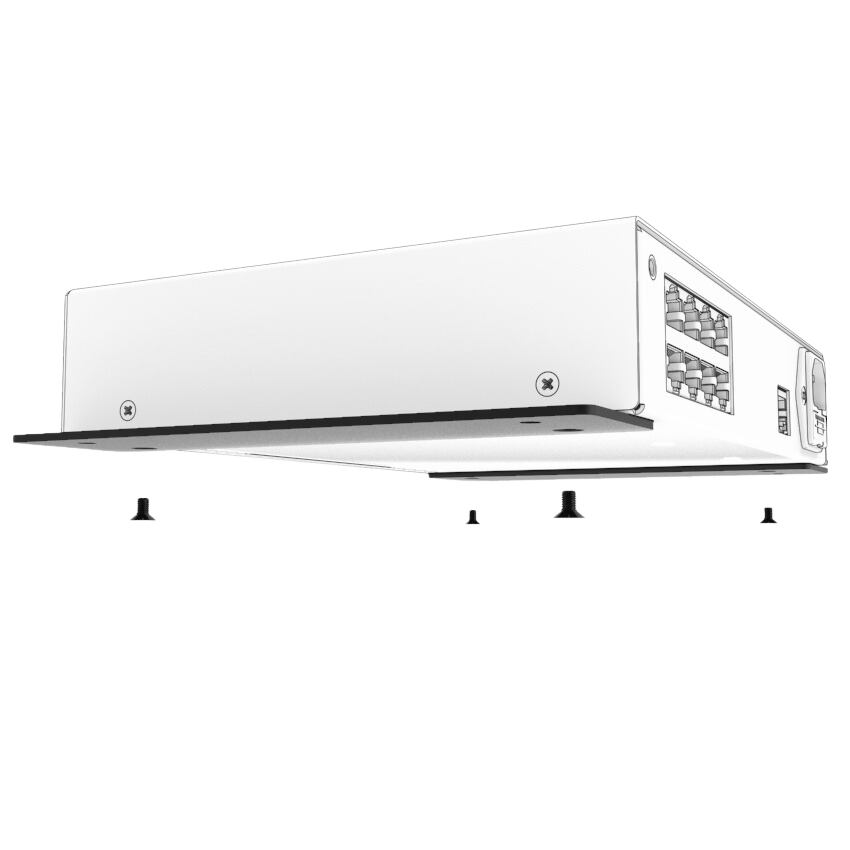

The Advatek Flat Surface Front Mount Kit is a pair of steel brackets that let you fix a PixLite® controller flat against a wall, panel, or any solid surface. The brackets attach to the sides of the unit and provide front-facing screw fixings, so the controller sits flush and can be mounted or removed without disturbing the surrounding installation.
Designed for the Advatek PixLite® T8-S Mk3 and T16X-S Mk3, the kit ships as two powder-coated metal pieces with the fixing screws needed to attach the brackets to the unit. The matte black finish is colour-matched to the controllers for a clean, professional look in racks, enclosures, and exposed installations alike.
Key Features
- Mounts a PixLite® controller flat against a wall or surface with front-facing screw fixings
- Two-piece steel bracket set, 2mm steel with a high-quality powder-coated finish
- Seamless colour match to Advatek PixLite® Mk3 controllers (black)
- Supplied with 4 × M4 × 10mm black anodized countersunk screws to attach the brackets to the unit
- Suits a single PixLite® T8-S Mk3 or T16X-S Mk3
Specifications
| Compatible with | PixLite® T8-S Mk3, T16X-S Mk3 |
| Contents | 2 metal pieces + 4 × M4 × 10mm black anodized countersunk screws |
| Material | 2mm steel, powder-coated finish |
| Colour | Black |
Compatible with Advatek PixLite® Mk3 pixel controllers. Contact us if you're unsure which mounting option suits your installation.
