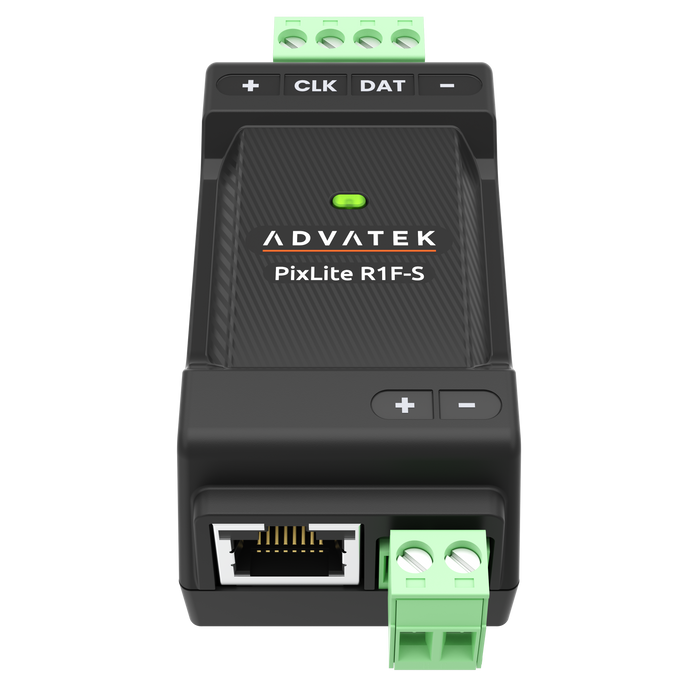

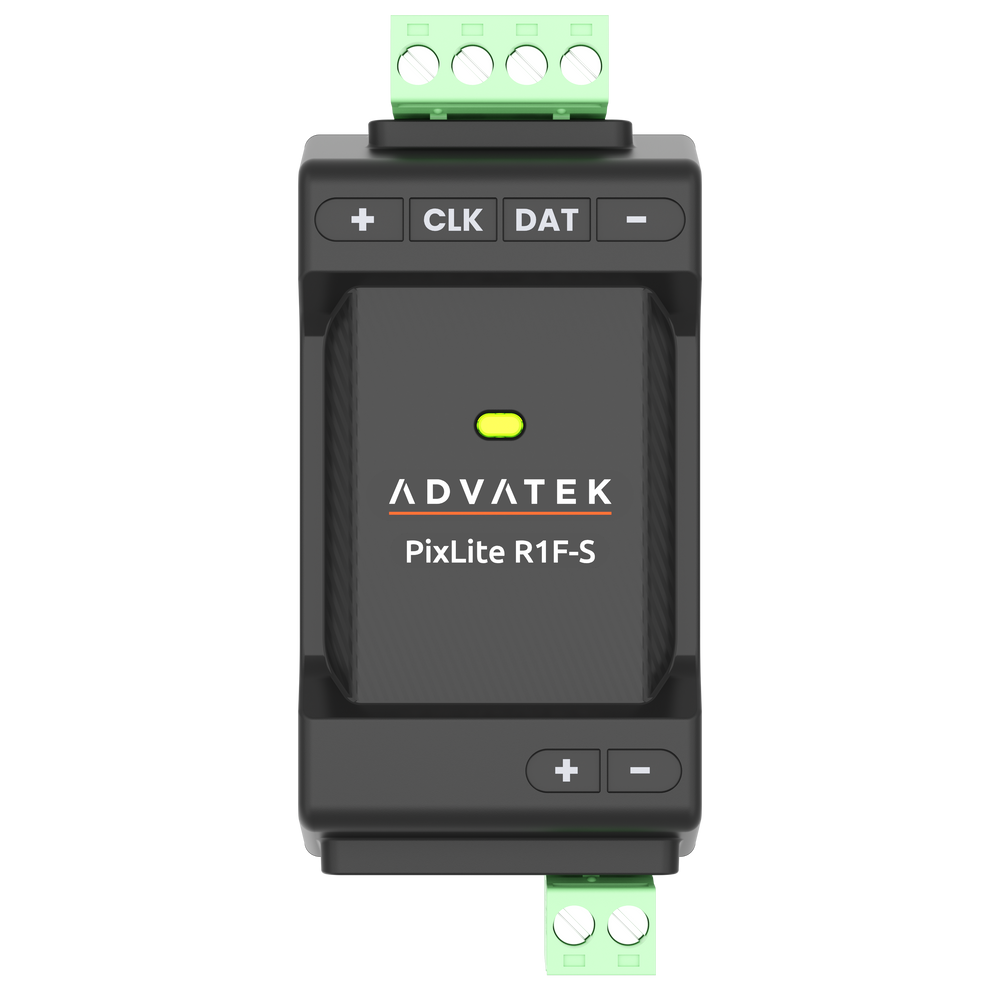

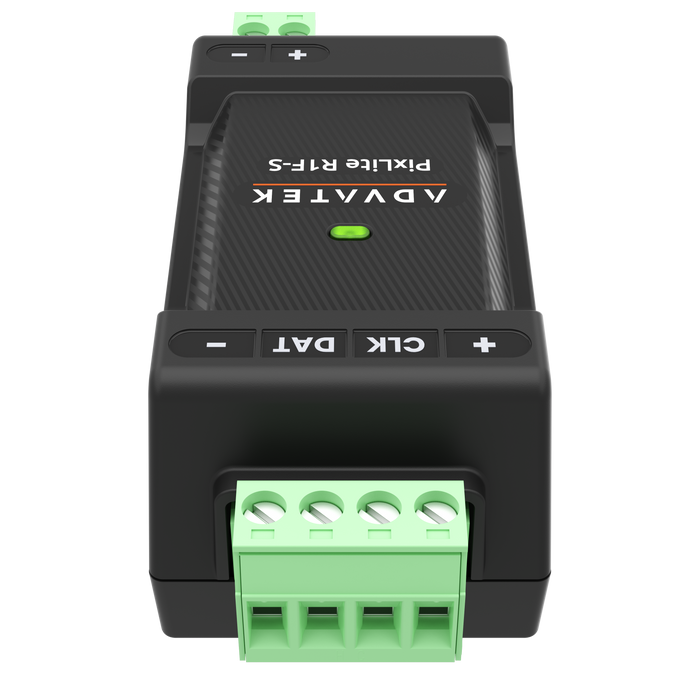

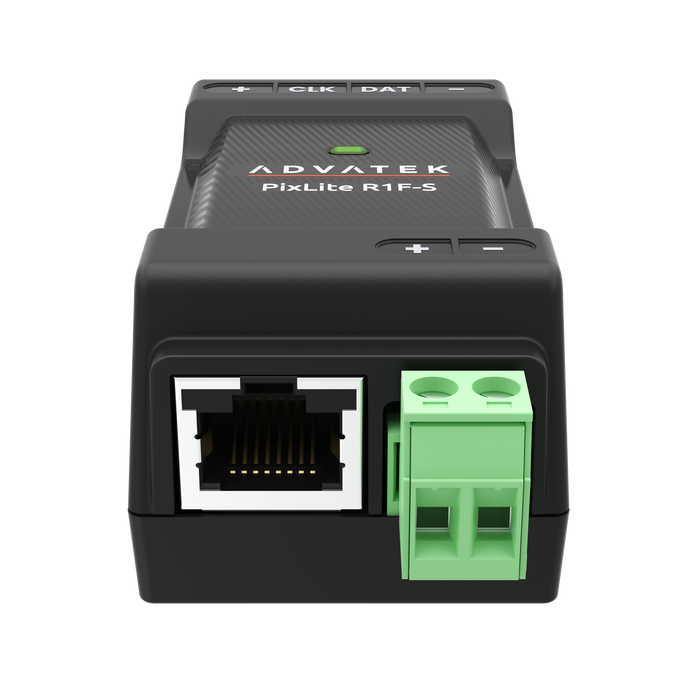

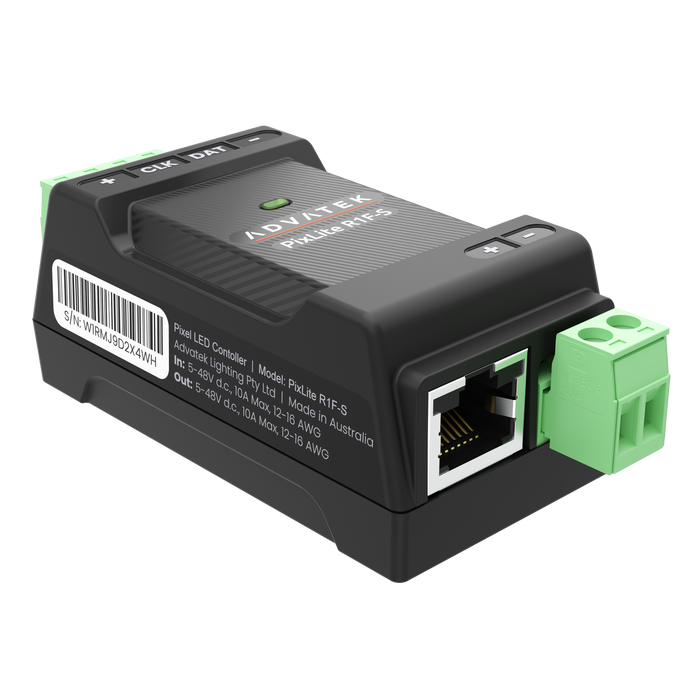

Advatek PixLite R1F-S

The Advatek PixLite® R1F-S is a compact long-range pixel receiver designed to operate alongside a PixLite® T-series long-range controller, such as the T16X-S Mk3. Rather than acting as a standalone controller, the R1F-S receives differential (long-distance) pixel data sent over Cat/Ethernet cable from the transmitter and converts it into a pixel-ready signal locally, driving a single run of up to 1020 RGB (or 768 RGBW) pixels. Its slimline, low-profile form factor is purpose-built for tight spaces where a discrete, single-output unit is all that is required.

In a long-range system, the R1F-S lets you place pixel drive electronics right where the LEDs are — multiple receivers can cover a 300-meter radius from a single transmitter, reducing the number of controllers, eliminating wasted pixel outputs and lowering overall system and commissioning costs. When paired with the PixLite® T16X-S Mk3, highly dispersed installations can cut control costs by a significant margin. Wide 5V–48V compatibility, a 10A per-output current capacity and flexible flat, tubular and DIN rail mounting make it a versatile choice for large-scale architectural and similar projects, all backed by an industry-leading five-year warranty.

Key Features

• Single long-range pixel output; drives up to 1020 RGB or 768 RGBW pixels
• Receives differential data from a PixLite® T-series controller (e.g. T16X-S Mk3)
• Multiple receivers cover a 300-meter radius from the transmitter
• Wide 5V–48V DC operation — receiver and pixels can be driven at the same voltage
• 10A per-output throughput current
• Slimline, low-profile design ideal for tight spaces
• Flat surface, tubular surface and DIN rail mounting options; supplied with a versatile mounting clip
• Global certifications; proudly designed and made in Australia with a five-year warranty

Optional Conformal Coating adds a protective layer for harsh or high-humidity environments.
