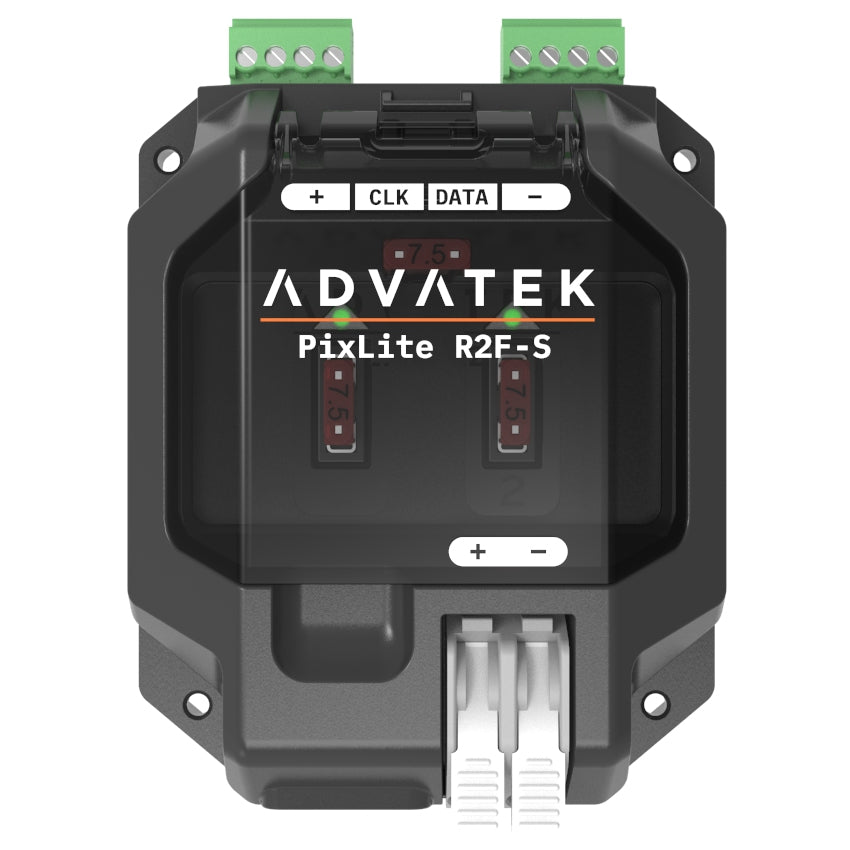

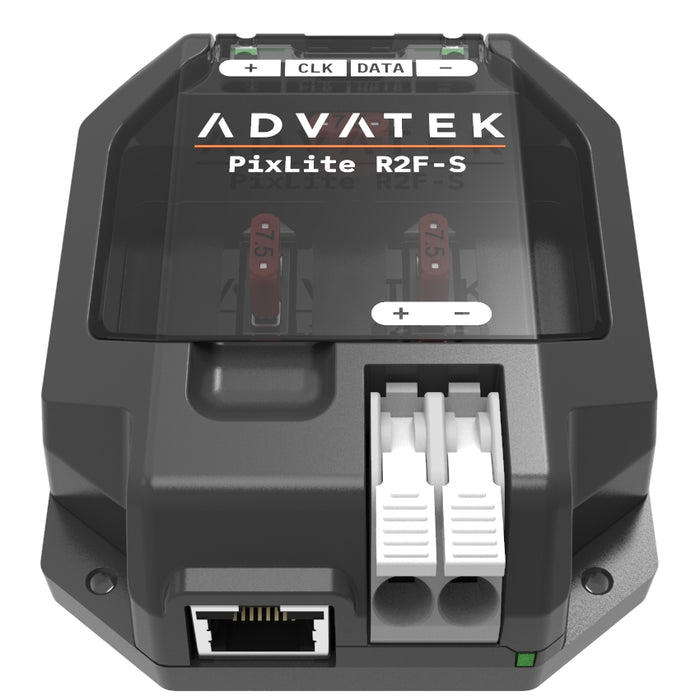

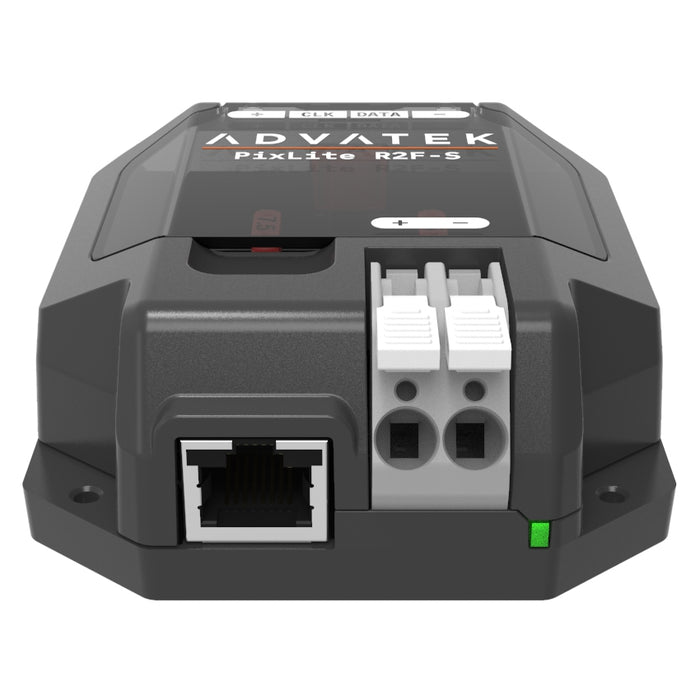

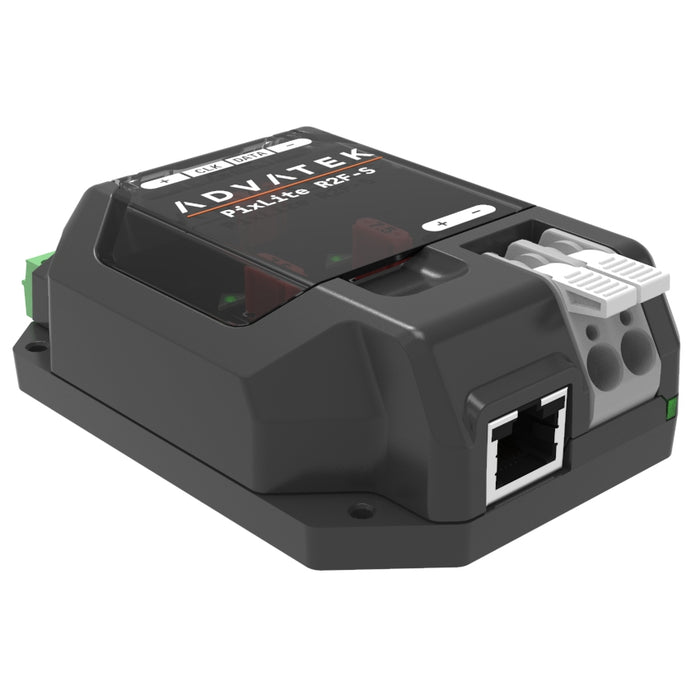

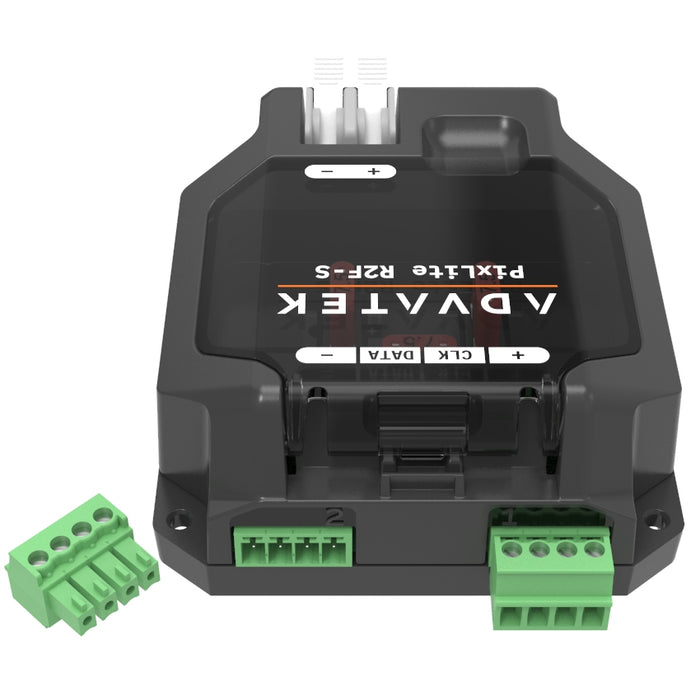

Advatek PixLite R2F-S

The Advatek PixLite® R2F-S is a two-output long-range pixel receiver designed to operate with a PixLite® T-series long-range controller, such as the T8-S Mk3 or T16X-S Mk3. It is not a standalone controller: paired with a T-series transmitter, the R2F-S receives differential (long-distance) pixel data sent over Cat/Ethernet cable and converts it into a pixel-ready signal locally, driving two runs of up to 1020 RGB (or 768 RGBW) pixels per output. This lets larger installations maintain their impact while keeping the pixel drive electronics close to the LEDs.

Able to receive data more than 300m from the transmitter, the R2F-S is engineered to deliver and built to last. It features industrial-strength fault protection on all inputs and data outputs, including short-circuit, ESD and common DC voltage-level protection, greatly reducing the likelihood of equipment failure over time. Each output is protected by a 7.5A mini-blade fuse, and a built-in spare fuse ensures a quick replacement is always on hand — all accessible via a flip-lid design. Its compact, slimline enclosure is both wall and DIN rail mountable, making it a reliable, professional-grade choice for commercial and industrial installations, backed by an industry-leading five-year warranty.

Key Features

• Two fused long-range pixel outputs; drives up to 1020 RGB or 768 RGBW pixels per output
• Receives differential data from a PixLite® T8-S Mk3 or T16X-S Mk3 controller
• Receives data more than 300m from the PixLite® T-series transmitter
• Industrial-strength fault protection on all inputs and outputs
• Short-circuit, ESD and common DC voltage-level protection
• 7.5A mini-blade fuse per output, plus a built-in spare fuse
• Sleek design with flip-lid access to all fuses
• Compact form factor; wall and DIN rail mountable; made in Australia with a five-year warranty

Optional Conformal Coating adds a protective layer for harsh or high-humidity environments.
