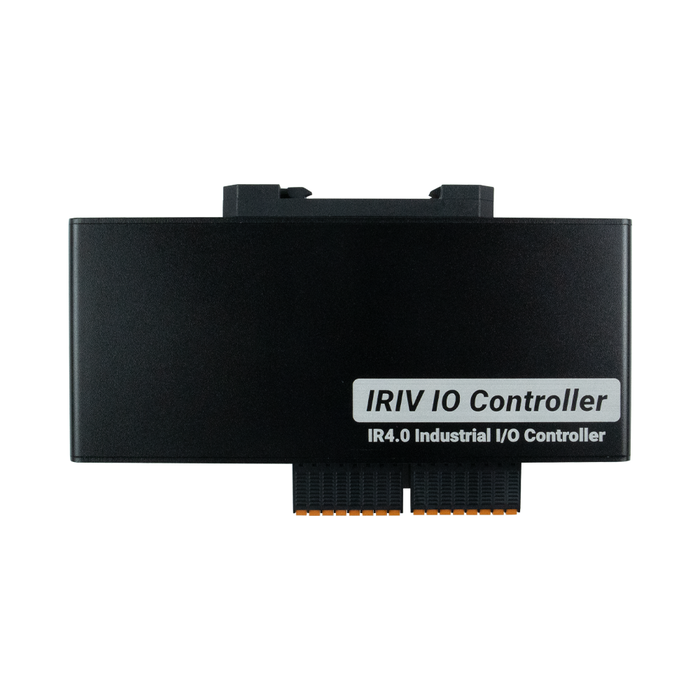

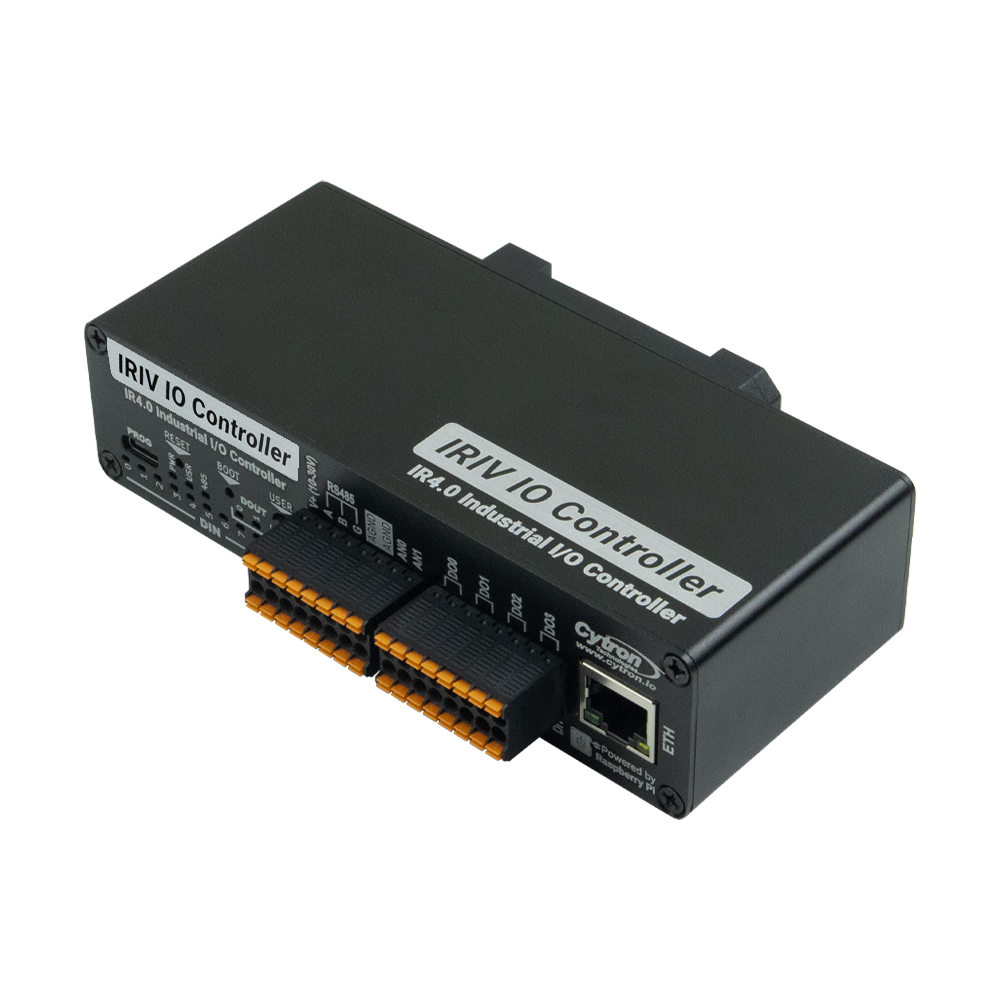

Cytron IRIV IO Controller - IR4.0 Industrial I/O Controller
Ready to be shipped from our US-based warehouse.
Introducing the IRIV IO Controller, an industrial-grade IO controller designed for lightweight automation solutions. It is powered by the brand new Raspberry Pi RP2350 MCU, making it a reliable solution for your industrial applications.
Engineered to simplify your industrial application and IO management, the IRIV IO Controller can be more than just a standalone IO Controller for your solution.
Powered by the Latest Raspberry Pi RP2350
The IRIV IO Controller is powered by the brand new Raspberry Pi RP2350 Chip, which makes it more powerful, fast, versatile, and efficient.
Various Industry Applications
IRIV IO Controller can be used in many industry applications. It can be used as a standalone IO Expander, Data Gatherer, Network Gateway, Automation Control, and much more!
IRIV Industrial Ecosystem
IRIV IO Controller can be used along with the powerful IRIV PiControl, making your industrial application more manageable and systematic while reducing costs. Use IRIV PiControl as your main system controller, while using IRIV IO Controller to gather your data or monitor your machinery and automation.
Specification:
- Microcontroller: Raspberry Pi RP2350, Dual ARM Cortex-M33 @ 150MHz
- RAM: 520KB on-chip SRAM
- Storage: 2MB flash memory
-

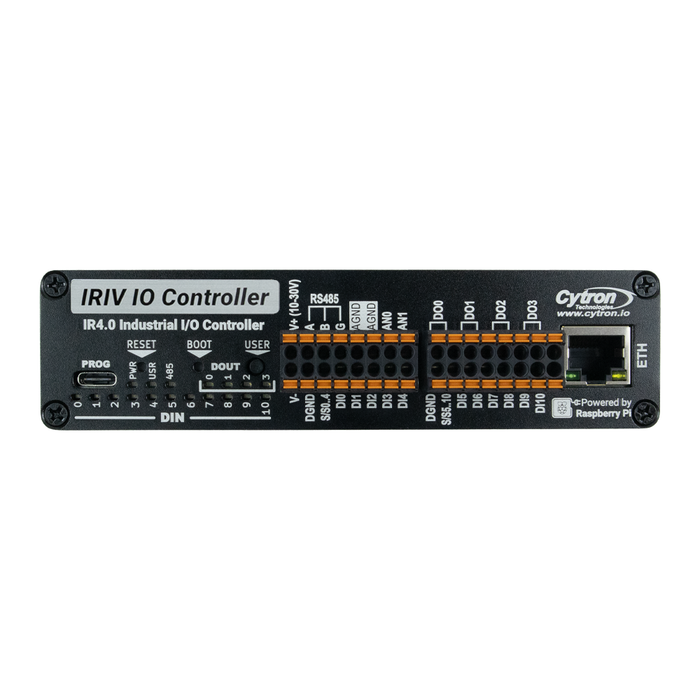

Interface:
- 1x USB-C (For programming and configuration)
- 1x RJ45 Ethernet (via W5500 Ethernet controller)
- 1x isolated RS485
- 11x isolated digital input (up to 50V)
- 4x isolated digital output (up to 50V)

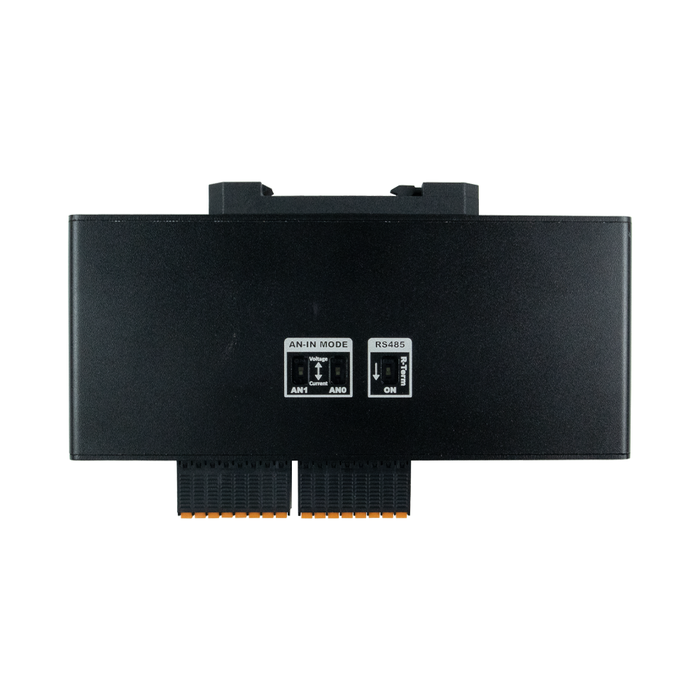

- 2x 12-bit analog input (0 - 10.56V / 0 - 42.58mA)
- Power Supply: DC 10-30V surge-protected
-
Additional Features:
- PCF85063A Real Time Clock
- 1x Reset Button
- 1x Boot Button
- 1x Programmable Button
- 1x programmable LED
- Status LED for Power, RS485, DIN & DOUT
- 1x Passive Buzzer
- Enclosure: Metal enclosure, fanless design, DIN rail mountable
