DMX Core 100 Wall Controller - PCB & Display only

$449.00

Availability: 8 in stock

Currently unavailable

SKU DMXCORE-100-BASE

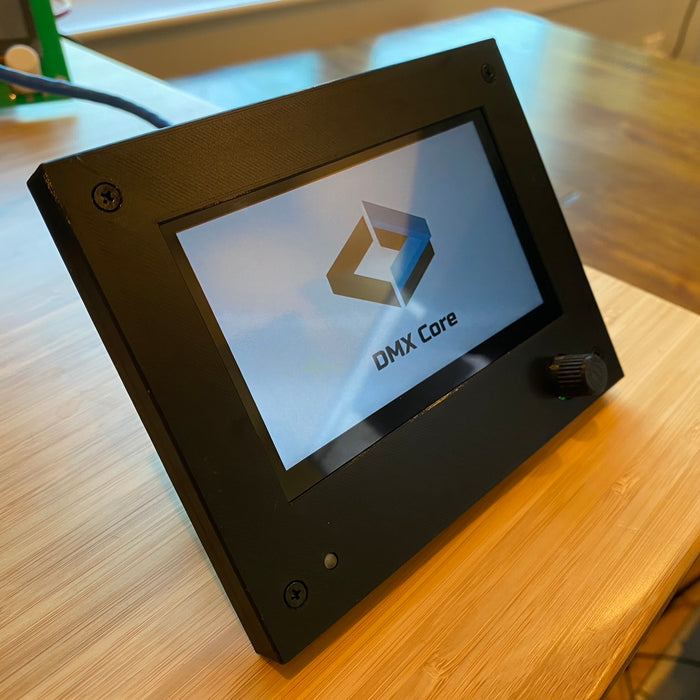

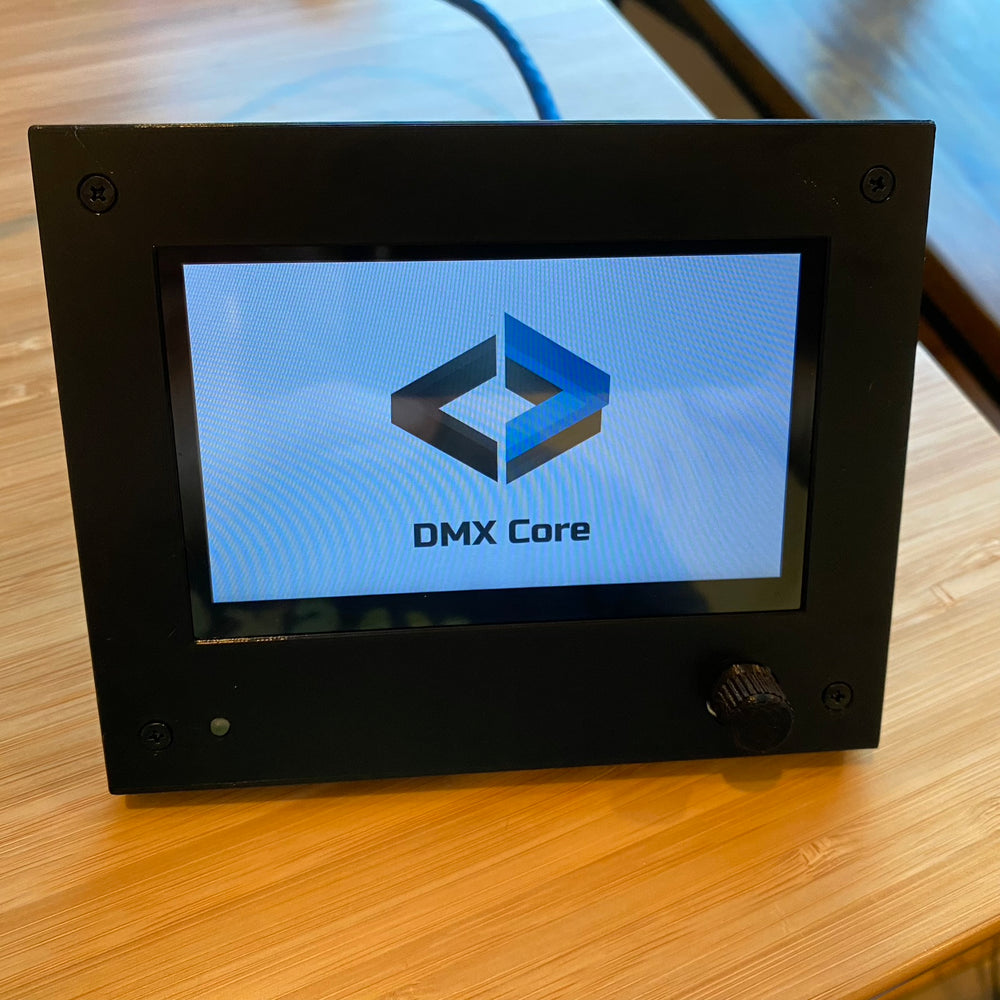

This is a wall controller based on the Raspberry Pi CM4 (not included) with a 4.3" touchscreen that can be mounted in a 2-gang electrical box. This listing is for the baseboard, button/display board, enclosure, and 4.3" LCD touchscreen display. It does not include the Raspberry Pi CM4 module and does not include any software or source file/schematic access. By adding your own CM4 module you can run any standard Raspberry Pi software on this. You will receive full configuration details/overlay files. It is meant for an integrator to use the display/CM4 combo with their own software.



Feature list:

  • Raspberry Pi CM4 (not included)
  • 4.3" touchscreen (800x480, driven over HDMI and I2C+int for touchscreen)
  • RTC clock with battery backup
  • Power over Ethernet or 8-28VDC power input
  • 1 GbE Ethernet
  • MicroSD and USB-A for file storage/boot image loading
  • Temperature sensor (LM75)
  • Rotary encoder and RGB LED on front (direct GPIO connection)
  • 3D printed enclosure, can be customized (STL files provided)
